HD

Drainage
Cell

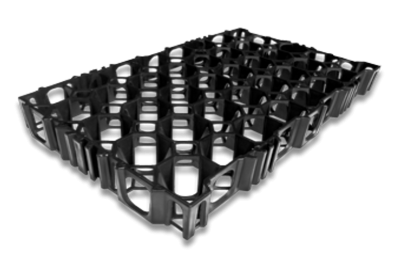

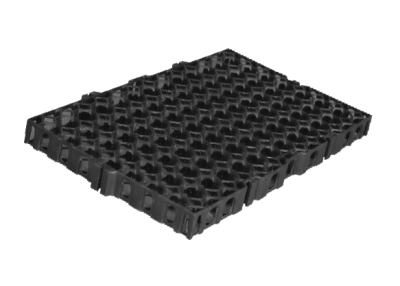

Hydroex Drainage Cell Unit or Grass / Gravel Porous Pavers Drainage Cell is a plastic cell structure designed for the creation of permeable grass/gravel areas subject to pedestrian and vehicular traffic, it is lightweight, easy to install and with excellent high strength interlocking system.

Current
News

Hydroex Storm Water Management Solution is to maintain

Read More
  • Polypropylene Material
  • Superior compressive load bearing capacity
  • Sizes in

25mm | 30mm | 50mm

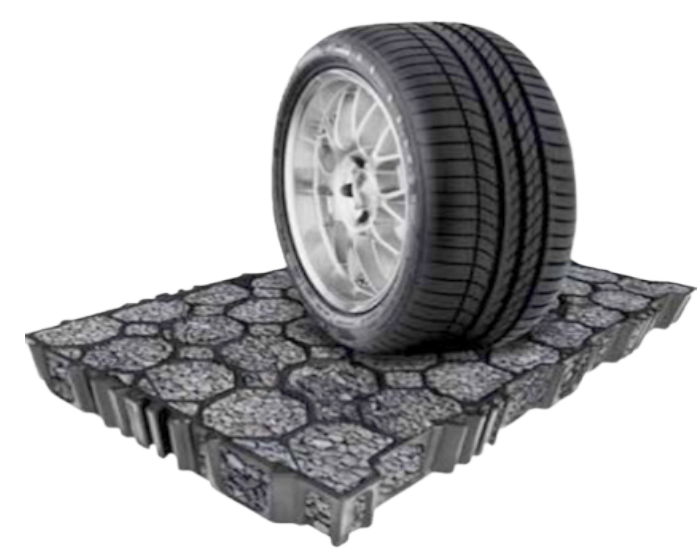

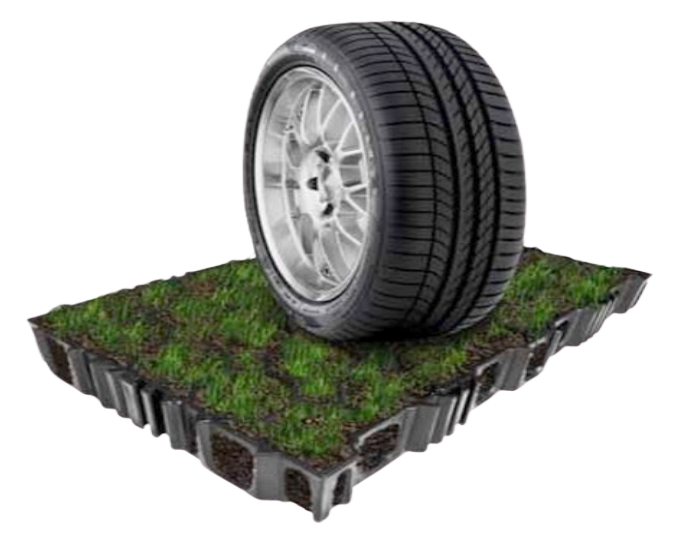

The cell structure provides high load bearing capacity and real containment of soil mix / gravel to create a permeable surface, due to its unique three-dimensional design, it can withstand heavy traffic for parking lots without traditional problems associated with permeable paving such as overheating and compaction of the root zone.

The system can be used for storage, dispersion of cold or heat, reducing hydrostatic pressure for high water table and for filtration of rainwater as well as filled grass or gravel as porous pavers.

Specification Sheet

Read More

Applications

Read More

Specification Sheet

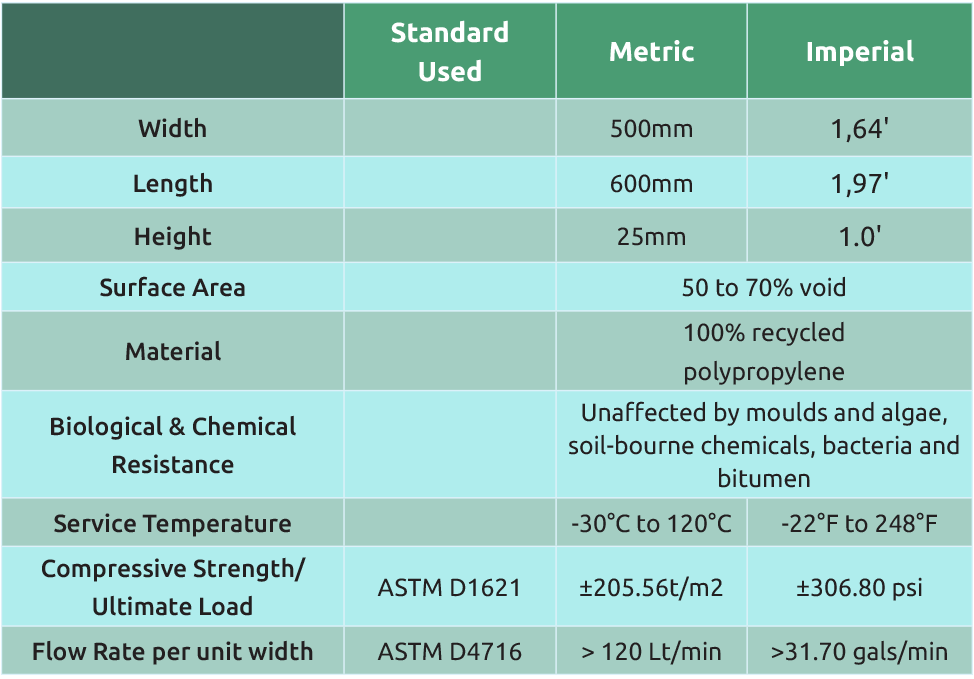

25mm (1.0") Drainage Cell Specification Sheet

25mm (1.0") Drainage Cell Specification Sheet

Dimension Chart of HD Geocell 50 mm

Applications

Applications

HD Drainage Cell System provides the ideal answer for sub-soil drainage applications that enable the creation of a successful Roof Garden without the worry of the usual issues related to cracking or leaking. The drainage cells offer a uniform surface and an internal void space for efficient drainage of extra water. They come with a special Diamond CUP construction that allows passive irrigation water retention and aids in creating a high-water table in the soil above profile so that vegetation can thrive during protracted dry seasons.

Application Areas:

  • Driveways
  • Roof Decks
  • Linear Drainage for underground structures
  • Tunnel Drainage
  • Podium gardens and planter boxes
  • Landfills Drains (Leachate Collection & Gas)
  • Landscape French spouts
  • Sports venue Keeping Subsoil Drainage the Founda- Tions Walls
  • Hignway and Road Edge Drains
  • Gas dispersion and biofilters
  • System of underdrains for high groundwater levels

System Benefits:

  • Very high compressive load bearing capacity.
  • Drainage Cell allows for three dimensional vertical & horizontal root growth.
  • Maintains actual void size for effective drainage & root growth after backfill & compaction.
  • Cells can easily be cut to required size.
  • Easy to store and install and comes in pre-clipped panels of 1.00 X 1.20 panels.
  • Environmentally friendly, made from selected Recycled Polypropylene.
  • Also available in Virgin Material if required.
  • Light weight and easy to install, no need for heavy machinery or skilled labour.
  • Creates permeable surface and reduces heat or cold.
  • Reduces Stormwater runoff rate if used as permeable grass or gravel pavers.
  • Complies with Water Sensitive Urban Design.
Specification Sheet
